Beschreibung
- Character: Extremely easy to pump and light make this unit very suitable as combined hand pallet truck and lift table
- Quick-lift as standard with automatic transfer to normal lifting with loads over 150 kg
- Automatic descendng speed control by a uniquely hydraulic valve, the decending speed always keeps same regardless the truck with or without load. It will prevent cargo damage from fast descending
- Front support legs and adjustable stabilizers extended to the floor automatically when the forks reach a height of 420 mm, to ensure maximum stability and optimum braking

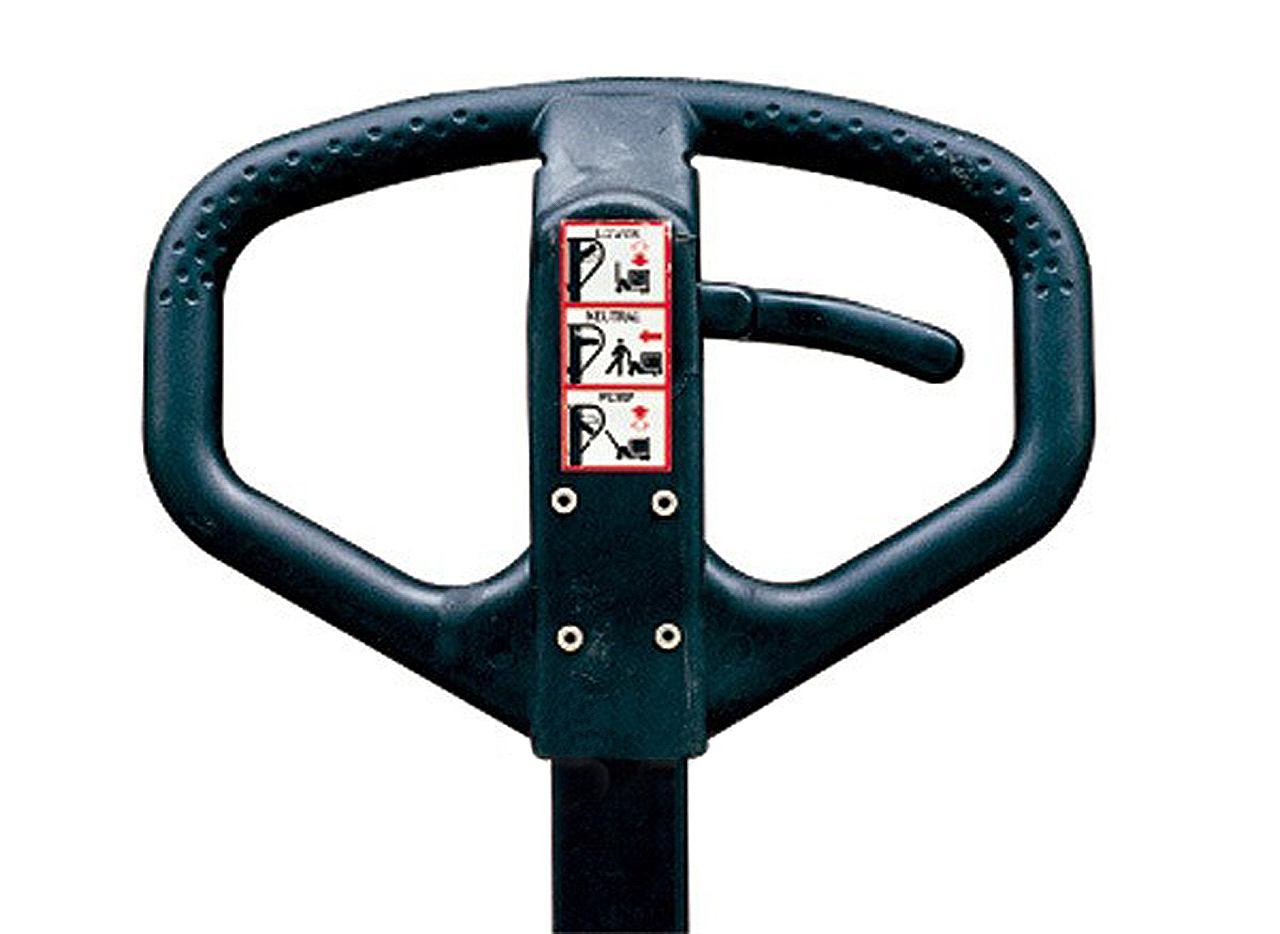

- Ergonomic warm handle offers you simple and comfortable operation
- Heavy duty design: 4 mm steel plate fork and larger lift piston ensure the truck to reach rated capacity
- Conforms to EN1757-4
Technische Spezifikationen
Capacity |
1000 kg |
Max. Fork Height |
800 mm |
Min. Fork Height |
85 mm |
Fork Overall Width |
520 mm |
Fork Lenght |
1140 mm |

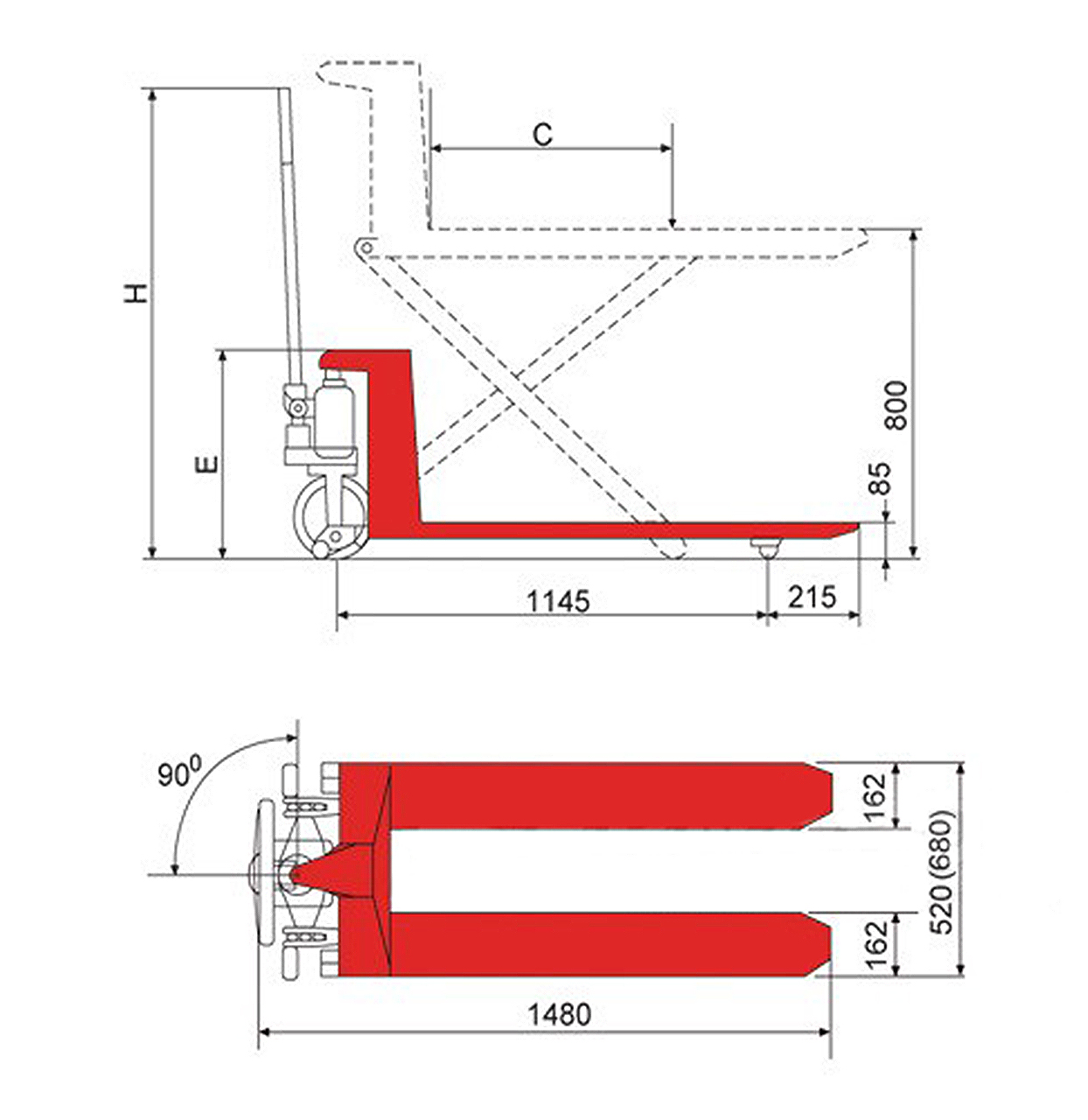

Dimension |
|
C |
600 mm |
E |
530 mm |
H |
1250 mm |
Net Weight |
105 kg |
Lieferumfang
ACHTUNG:
Bilder können optionales Zubehör enthalten!
Bitte Lieferumfang beachten!
Produktsicherheit
Hersteller- & Kontaktinformationen
PWA HandelsgesmbH
Nebingerstraße 7a
4020 Linz
Austria
Tel.: +43 (0) 732 / 664015
Email: bernardo@pwa.at
Produktidentifikationsmerkmale
Produktname: Bernardo Manueller Scherenhubwagen SHW 1000 T
Artikelnummer: 07-1018
GTIN: 9009468040246
Sicherheits- und Warnhinweise
Warnzeichen:




Gebotszeichen:



Verbotszeichen:



Bitte beachten Sie zusätzlich die mitgelieferte Gebrauchsanweisung.
